Energy Spectrometer on Diffractometer using Charge-Coupled Device X-ray Detector

Hiroshi Abe,^a Hiroyuki Saitoh,^b Hironori Nakao,^c Kazuki Ito^d and Ken-ichi Ohshima^e

^aDepartment of Materials Science and Engineering, National Defense Academy, 1-10-20 Hashirimizu, Yokosuka 239-8686, Japan
^bSynchrotron Radiation Research Center, Japan Atomic Energy Research Institute, Mikazuki-cho, Sayo-gun, Hyogo 679-5148, Japan
^cDepartment of Physics, Tohoku University, Sendai 980-8578, Japan
^dLaboratory for Structural Biochemistry, RIKEN Harima Institute SPring-8 Center, 1-1-1 Kouto, Sayo-cho, Sayo-gun, Hyogo 679-5148, Japan
^eInstitute of Materials Science, University of Tsukuba, 1-1-1 Tennoudai, Tsukuba 305-8573, Japan

J. Appl. Cryst. 39 (2006) 767.

A charge-coupled device (CCD) X-ray detector for inelastic X-ray scattering was installed at the beamline BL-4C of the Photon Factory at the High Energy Accelerator Research Organization in Japan. A wavelength-dispersive X-ray spectrometer was mounted on a 6-circle diffractometer. Energy spectra were obtained by the CCD X-ray detector and curved highly oriented pyrolytic graphite for analyzer. By combination of energy spectroscopy and diffraction, real time data acquisition both of the momentum and energy transfer was performed simultaneously.

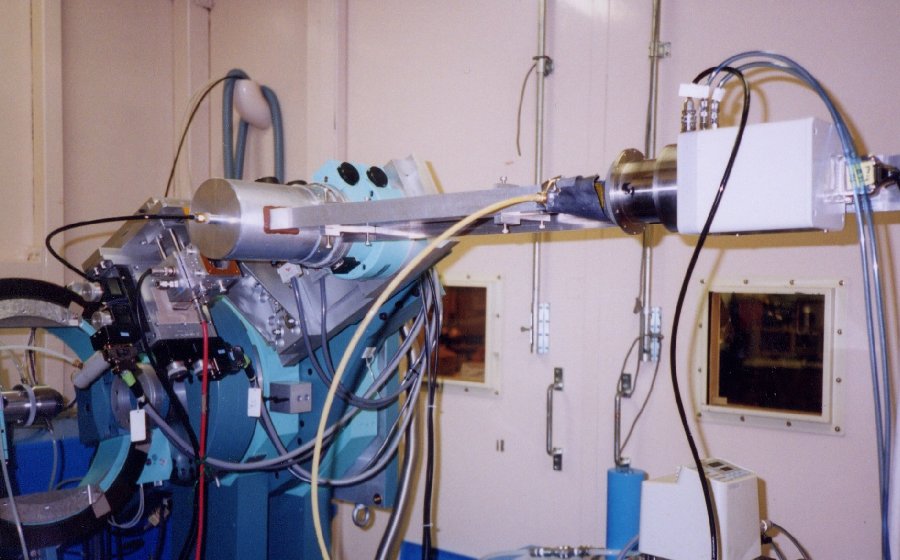

	Figure 1 Wavelength-dispersive X-ray spectroscopy was attached on the conventional 6-circle diffractometer. The charge-coupled device X-ray detector was mounted on 2q_A arm. A curved highly oriented pyrolytic graphite was placed inside the analyzer house.

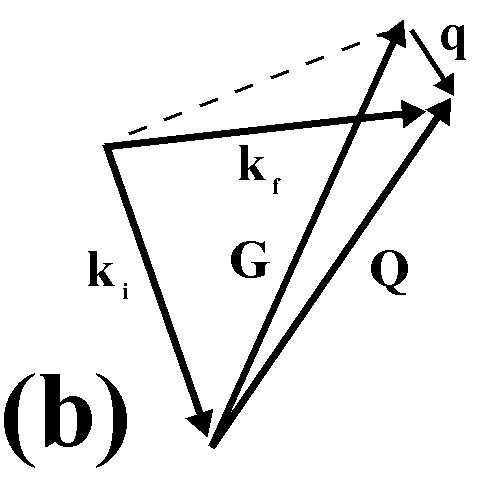

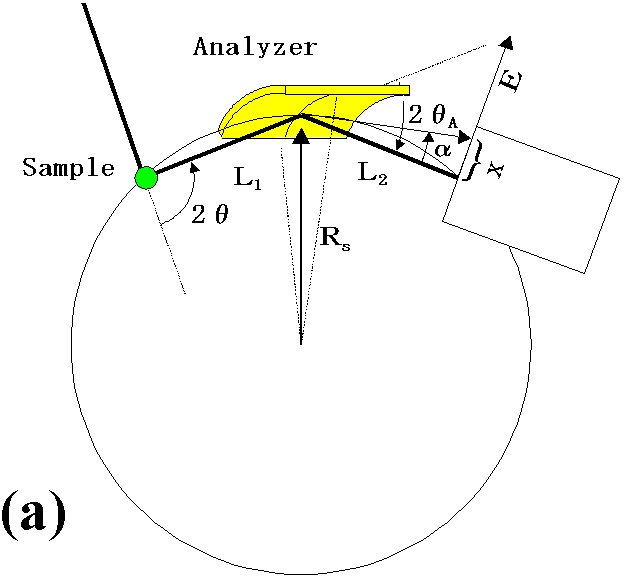

	Figure 2 (a) Schematic of the mosaic crystal analyzing spectrometer. Focusing geometry in the beam optics was designed. (b) Schematic drawing of an inelastic scattering experiment in reciprocal space.

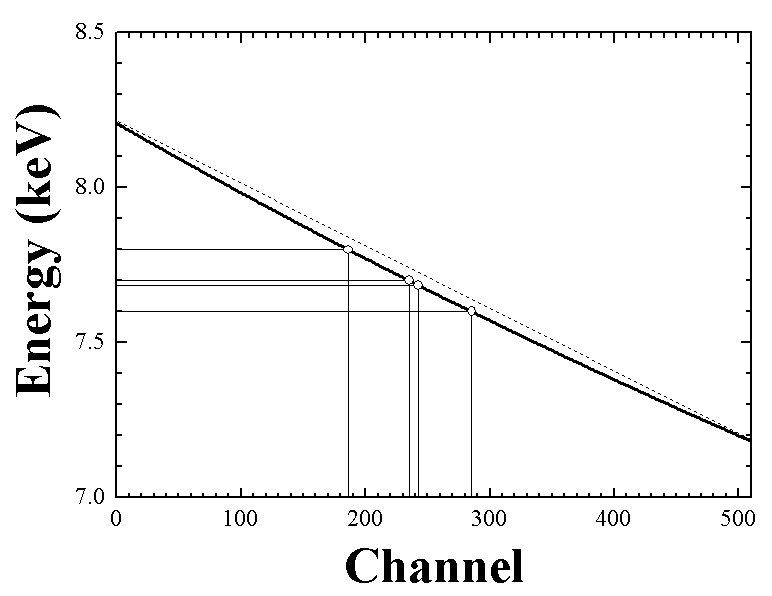

	Figure 3 Channel positions of the charge-coupled device camera depend on the incident energies at the fixed 2q_A value. Open circles show the channel positions of the observed peaks at each incident energies. The solid curve reveals the calculation result. The broken line shows linear relationship for a comparison. The scattered energy was corrected within 1 eV by the optic geometry (See text).

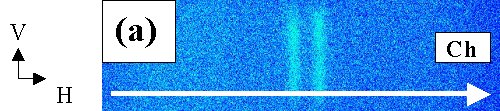

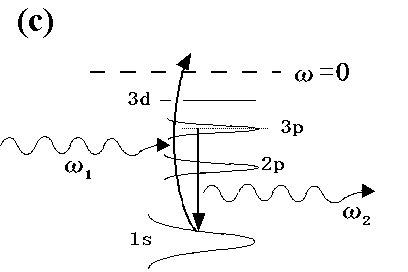

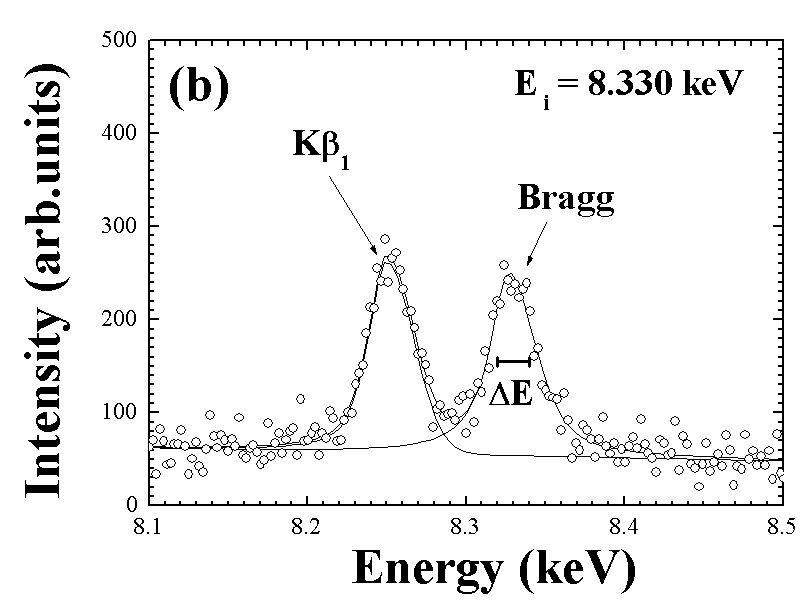

	Figure 4 The inelastic X-ray scattering was observed at 8.330 keV using 220 Bragg reflection of Ni polycrystalline. Two peaks correspond to Bragg reflection and kb₁ fluorescence, respectively. (a) The raw image of the charge-coupled device (CCD) X-ray detector, (b) two peak profiles after integration along the vertical direction of the CCD image. Experimental energy resolution, DE, was 20 eV and (c) a schematic diagram of 1s3p process.

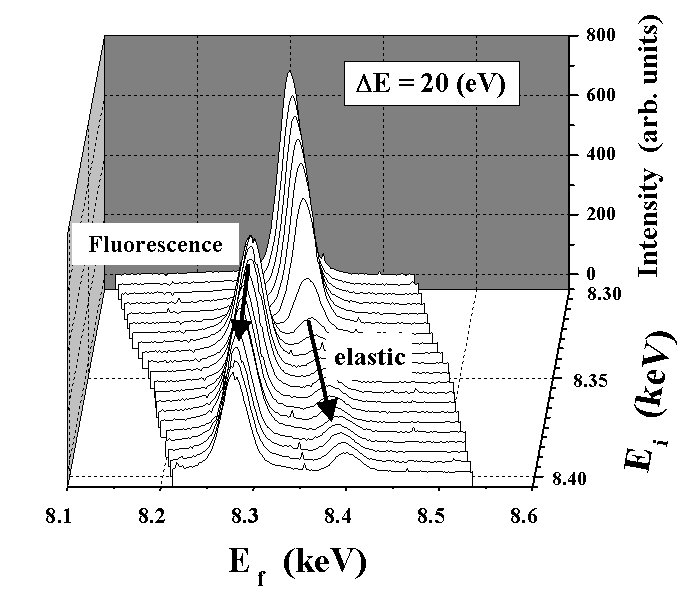

	Figure 5 Excitation energy dependence of the inelastic X-ray scattering spectra of Ni polycrystalline.

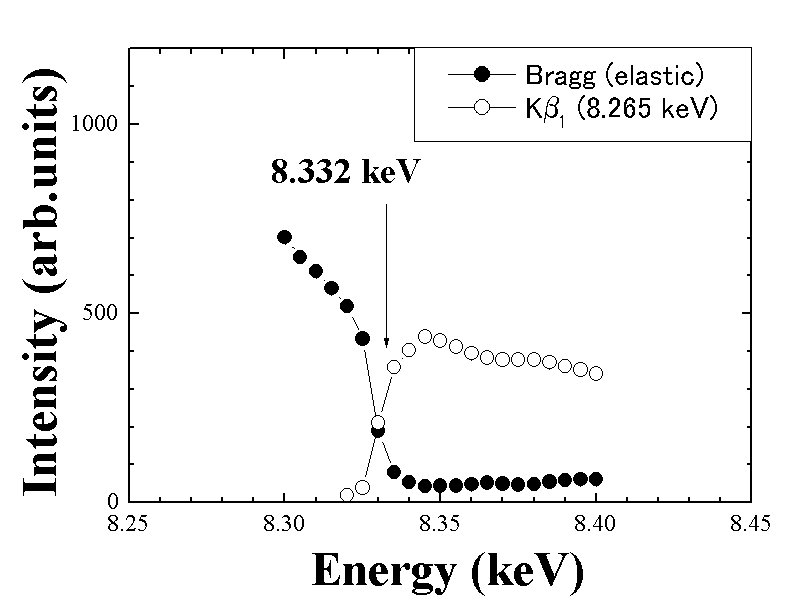

	Figure 6 Excitation energy dependence of Bragg reflection and fluorescence (Kb₁) with the charge-coupled device X-ray detector.

References

Abe, H., Saitoh, H., Ueno, T., Nakao, H., Matsuo, Y., Ohshima, K. & Matsumoto, H. (2003). J. Phys.: Condens. Matter 15, 1665-1676.

Gruner, S. M., Tate, M. W. & Eikenberry, E. F. (2002). Rev. Sci. Instrum. 73, 2815-2842.

Hamalainen, K., Hill, J. P., Huotari, S., Kao, C. ?C., Berman, L. E., Kotani, A., Ide, T. Peng, J. L. & Greene R. L. (2000). Phys. Rev. B 61, 1836-1840.

Hamamatsu Photonics, Japan, HiPic: Image acquisition software

Hayashi, H., Takeda, R., Udagawa, Y. & Kawamura, N. (2003). Phys. Rev. B 68, 045122.

Ice, G. E. & Sparks, C. J. (1990). Nucl. Instr. And Meth. A 291, 110-116.

Reinhard, L., Robertson, J. L., Moss, S. C., Ice, G. E., Zschack, P. & Sparks, C. J. (1992). Phys. Rev. B 45, 2662-2676.

Schonfeld, B., Ice, G. E., Sparks, C. J., Haubold, H. ?G., Schweika, W. & Shaffer, L. B. (1994). Phys. Stat. Sol. (B) 183, 79-95.

Stragier, H., Cross, J. O., Rehr, J. J. & Sorensen, L. B. (1992). Phys. Rev. Lett. 69, 3064-3067.

Tate, M. W., Gruner, S. M. & Eikenberry, E. F. (1997) Rev. Sci. Instrum. (1997) 68, 47-54.

Warren, B. E. X-RAY DIFFRACTION (Dover, 1990).
