Pressure-Induced Spectral Changes of Room-Temperature Ionic Liquid, N,N-Diethyl-N-methyl-N-(2-methoxyethyl)ammonium Bis(trifluoromethylsulfonyl)imide, [DEME][TFSI]

Yukihiro Yoshimura1, Takahiro Takekiyo1, Yusuke Imai2 and Hiroshi Abe2


1Department of Applied Chemistry, National Defense Academy, Yokosuka, Kanagawa 239-8686, Japan
 2Department of Materials Science and Engineering, National Defense Academy, Yokosuka, Kanagawa 239-8686, Japan

J. Phys. Chem. C 116 (2012) 2097-2101.

Abstract
We have investigated pressure-induced Raman spectral changes of ionic liquid, N,N-diethyl-N-methyl-N-(2-
methoxyethyl)ammonium bis(trifluoromethylsulfonyl)imide ([DEME][TFSI]) up to 5.5 GPa. We found that the CH stretching spectrum of [DEME] cation changes significantly above 4 GPa together with the large shift of conformational equilibrium between C1 and C2 conformers of [TFSI] anion toward C2 one. The results along with the visual observations show that no crystallization occurs even at 5.5 GPa. We suppose that structural organization in [DEME][TFSI] might significantly change at 4 to 5 GPa region.

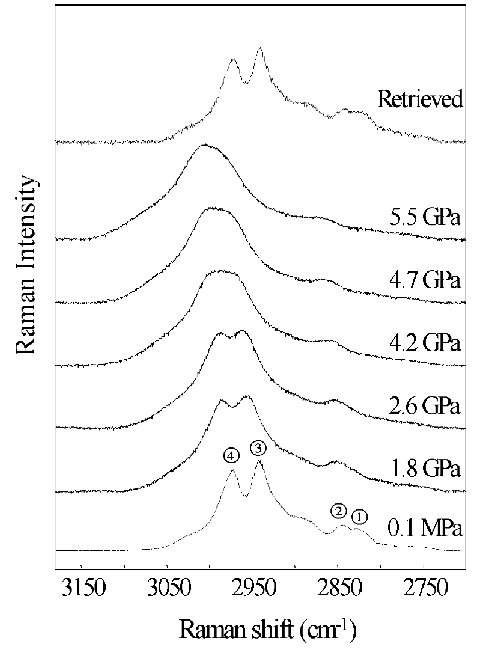

Fig. 1
Raman CH stretching spectral changes of [DEME][TFSI] at room temperature as a function of pressure.

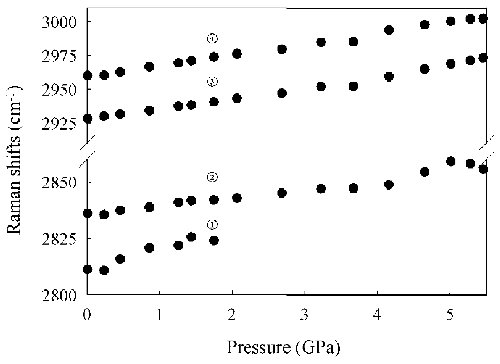

Fig. 2
Raman-frequency shifts of [DEME] cation against the pressure. The numbers (1-4) correspond to the peaks of [DEME] cation in Figure 1.
Fig. 3.
Photomicrographs in the sequence of elevated pressures. The p-T conditions were 0.1 MPa to 5.5 GPa and 298 K.

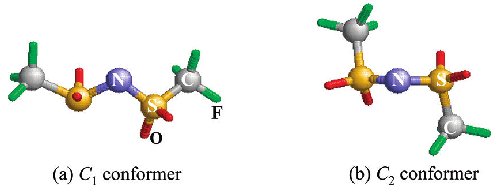

Fig. 4.
Optimized structures of C1 and C2 conformers of [TFSI] anion by B3LYP/6-311G+(d) level.

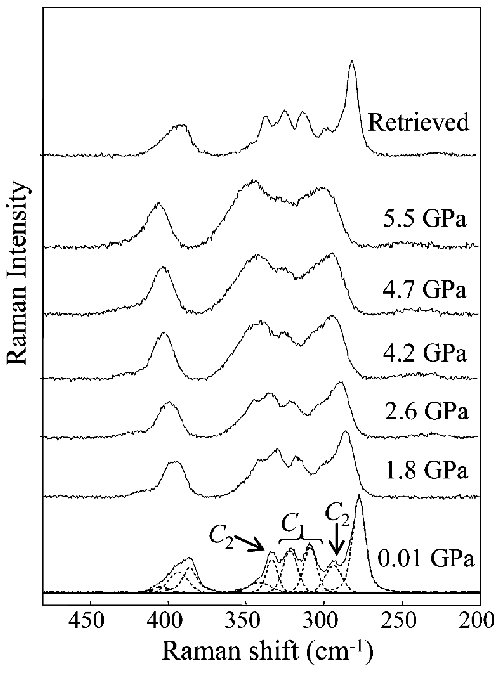

Fig. 5
Raman spectral changes due to the [TFSI] anion as a function of pressure at room temperature. The spectra can be represented by several mixed GaussianLorentzian curves. Representative band component analyses of Raman bands are shown as dashed curves.

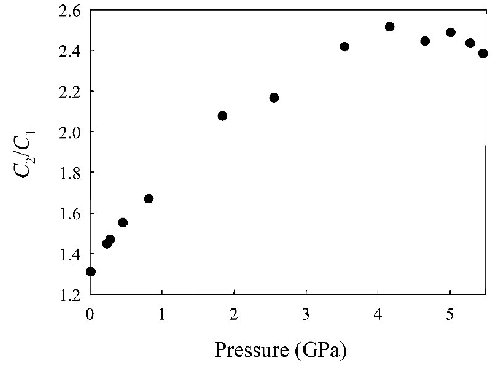

Fig. 6
Pressure dependence of the intensity ratio between the C1 and C2 conformers of [TFSI] anion estimated fromthe results of Figure 5.

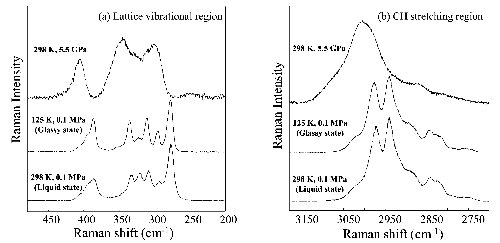

Fig. 7
Comparison of the Raman spectra of [DEME][TFSI] at various p-T values. (a) The lattice vibrational region and (b) the CH stretching region.
References
(1) Welton, T. Chem. Rev. 1999, 99, 2071.
(2) Earle, M. J.; Seddon, R. Pure Appl. Chem. 2000, 72, 1391.
(3) Rivera-Calzada, A.; Kaminski, K.; Leon, C.; Paluch, M. J. Phys. Chem. B 2008, 112, 3110.
(4) Chang, H.-C.; Jiang, J.-C.; Su, J.-C.; Chang, C.-Y.; Lin, S. H. J. Phys. Chem. A 2007, 111, 9201.
(5) Chang, H. C.; Jiang, J. C.; Chang, C. Y.; Su, J. C.; Hung, Y. C.; Liou, Y. C.; Lin, S. H. J. Phys. Chem. B 2008, 112, 4351.
(6) Umebayashi, Y.; Jiang, J.-C.; Shan, Y.-L.; Lin, K.-H.; Fujii, K.; Seki, S.; Ishiguro, S.; Lin, S. H.; Chang, H.-C. J. Chem. Phys. 2009, 130, 124503.
(7) Chang, H.-C.; Jiang, J.-C.; Liou, Y.-C.; Hung, C.-H.; Lai, T.-Y.; Lin, S. H. J. Chem. Phys. 2008, 129, 044506.
(8) Chang, H.-C.; Jiang, J.-C.; Liou, Y.-C.; Hung, C.-H.; Lai, T.-Y.; Lin, S. H. Anal. Sci. 2008, 24, 1305.
(9) Su, L.; Li, L.; Hu, Y.; Yuan, C.; Shao, C.; Hong, S. J. Chem. Phys. 2009, 130, 184503.
(10) Su, L.; Li, M.; Zhu, X.; Wang, Z.; Chen, Z.; Li, F.; Zhou, Q.; Hong, S. J. Phys. Chem. B 2010, 114, 5061.
(11) Imai, Y.; Takekiyo, T.; Abe, H.; Yoshimura, Y. High Pressure Res. 2010, 31, 53.
(12) Takekiyo, T.; Imai, Y.; Hatano, N.; Abe, H.; Yoshimura, Y. High Pressure Res. 2010, 31, 35.
(13) Yoshimura, Y.; Takekiyo, T.; Imai, Y.; Abe, H. Ionic Liquid/Book 1: High Pressure Phase Behavior of Two Imidazolium-Based Ionic Liquids, [bmim][BF4] and [bmim][PF6]; InTech: Rijeka, Croatia, in press.
(14) Sato., T.;Masuda, G.; Takagi, K. Electrochim. Acta 2004, 49, 3603.
(15) Sato., T.;Masuda, G.; Takagi, K. Electrochim. Acta 2008, 53, 4934.
(16) Mao, H. K.; Bell, P. M.; Shaner, J. W.; Steinberg, D. J. Appl. Phys. 1978, 49, 3276.
(17) Mao, H. K.; Xu, J.; Bell, P. M. J. Geophys. Res. 1986, 91, 4673.
(18) Fujii, K.; Fujimori, T.; Takamuku, T.; Kanzaki, R.; Umebayasi, Y.; Ishiguro, S. J. Phys. Chem. B 2006, 110, 8179.
(19) Lassegues, J. C.; Grondin, J.; Holomb, R.; Johansson, P. J. Raman Spectrosc. 2007, 38, 551.
(20) Herstedt,M.; Smirnov, M.; Johansson, P.; Chami, M.; Grondlin, J.; Servant, L.; Lassegues, J. C. J. Raman Spectrosc. 2005, 36, 762.
(21) Herstedt, M.; Henderson, W. A.; Smirnov, M.; Ducasse, L.; Servant, L.; Talaga, D.; Lassegues, J. C. J. Mol. Struct. 2006, 783, 145.
(22) Wang, Y. T.; Voth, G. A. J. Am. Chem. Soc. 2005, 127, 12192.
(23) Lopes, J. N. A. C.; Pauda, A. A. H. J. Phys. Chem. B 2006, 110, 3330.
(24) Takekiyo, T.; Imai, Y.; Hatano, N.; Abe, H.; Yoshimura, Y. Chem. Phys. Lett. 2011, 511, 241.
(25) Taniguchi, Y.; Takaya, H.; Wong, P. T. T.; Whalley, E. J. Chem. Phys. 1981, 75, 4815.
(26) Takekiyo, T.; Yoshimura, Y. J. Phys. Chem. A 2006, 110, 10829.
(27) Yoshimura, Y.; Goto, T.; Abe, H.; Imai, Y. J. Phys. Chem. B 2009, 113, 8091.
