Glass Transition Behavior of the Quaternary Ammonium-Type Ionic Liquid: N, N -Diethyl-N-methyl-N-(2-methoxyethyl)ammonium Bromide-H2O Mixtures

Yukihiro Yoshimura,1 Naohiro Hatano,1 Yusuke Imai,2 Hiroshi Abe,2 Osamu Shimada,3 and Tomonori Hanasaki3

1Department of Applied Chemistry, National Defense Academy, Yokosuka, Kanagawa 239-8686, Japan
2Department of Materials Science and Engineering, National Defense Academy, Yokosuka, Kanagawa 239-8686, Japan
3Department of Applied Chemistry, Ritsumeikan University, Kusatsu, Shiga 525-8577, Japan

Journal of Thermodynamics
Volume 2012, Article ID 575728, 6 pages

Abstract
By a simple differential thermal analysis (DTA) system, the concentration dependence of the glass transition temperatures (Tg s) for the quaternary ammonium-type ionic liquid, N, N-diethyl-N-methyl-N-(2-methoxyethyl)ammonium bromide [DEME][Br] and H2O mixtures, after quick precooling was measured as a function of water concentration x (mol% H2O). We compared the results with the previous results of [DEME][I]-H2O and [DEME][BF4]-H2O mixtures in which a double-glass transition behavior was observed. Remarkably, the [DEME][Br]-H2O mixtures basically show one-Tg behavior and the Tg decreases monotonically with increasing H2O content up to around x = 91.5. But it suddenly jumps to higher Tg value at a specific x = 92. At this very limited point, two Tgs (Tg1, Tg2) which we might consider as a transition state from the structure belonging to the Tg1 group to another one due to the Tg2 group were observed. These results clearly reflect the difference in the anionic effects among Br-, I-, and BF4-. The end of the glass-formation region of [DEME][Br]-H2O mixtures is around x = 98.9 and moves to more water-rich region as compared to those of [DEME][BF4]-H2O (x = 96.0) and [DEME][I]-H2O (x = 95.0) mixtures.

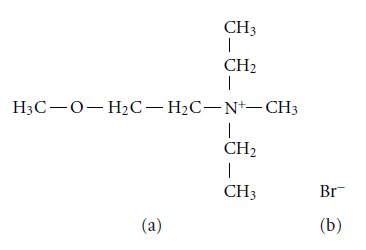

Fig. 1
Schematic chemical structure of (a) [DEME]+ cation and (b) bromide anion.

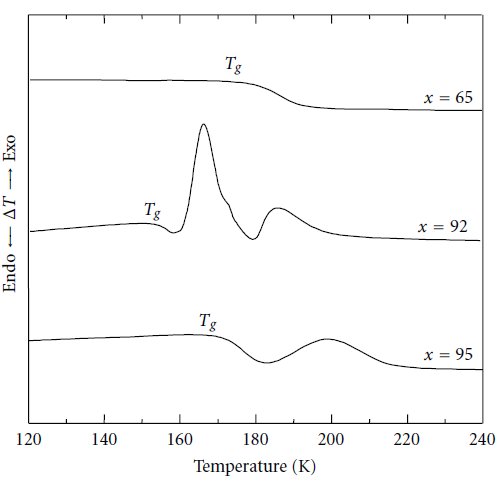

Fig. 2
Schematic DTA warm-up traces of 65.0, 92.0, and 95.0mol% H2O mixed solutions are shown.

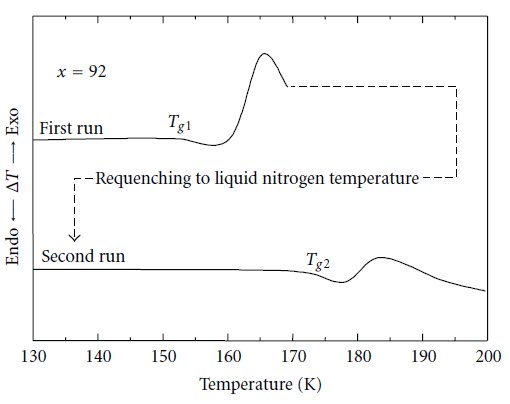

Fig. 3.
The requenching procedure for detecting the Tg2 at x = 92.0 is shown.

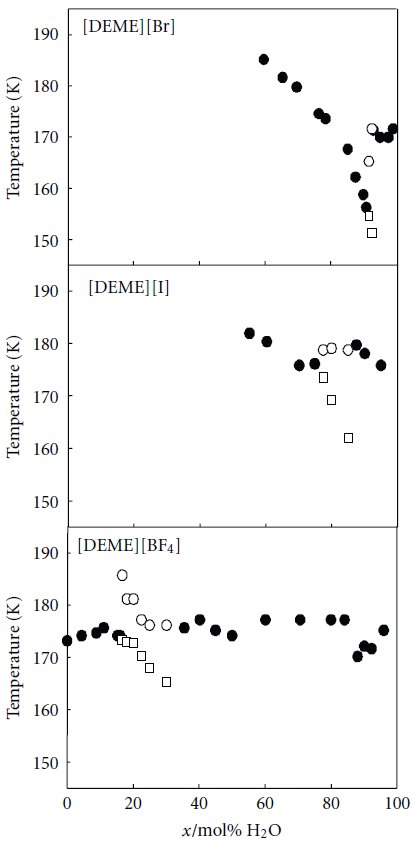

Fig. 4.
Tg variations as a function of x are shown. For comparison, Tg data of [DEME][I]-H2O and [DEME][BF4]-H2O mixed solutions are also shown. : Tg1, : Tg2, : Tg . (only one glass transition was observed except for the region x = 91.5-92.5).

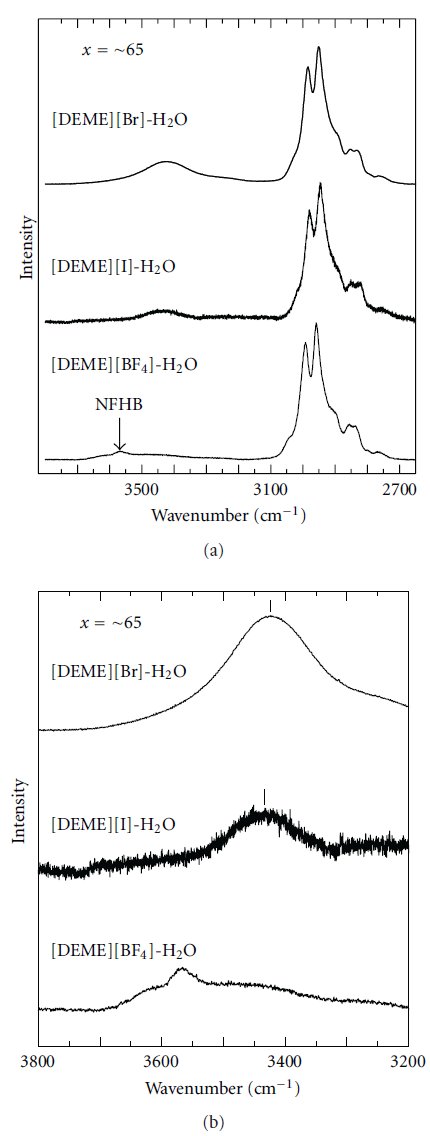

Fig. 5.
Comparison of the Raman spectra among [DEME][BF4]-H2O, [DEME][I]-H2O, and [DEME][Br]-H2O at x =65 in the liquiud state. Peak intensities are normalized by the strongest peak of CH stretching vibrational mode of [DEME]+ cation. (a) The CH and OH stretching vibrational modes of the solutions and (b) the OH stretching vibrational region.
References
[1] T. Sato, G.Masuda, and K. Takagi, “Electrochemical properties of novel ionic liquids for electric double layer capacitor applications,” Electrochimica Acta, vol. 49, pp. 3603-3611, 2004.
[2] M. J. Earle, P. B. McCormac, and K. R. Seddon, “Diels-Alder reactions in ionic liquids: a safe recyclable alternative to
lithium perchlorate-diethyl ether mixtures,” Green Chemistry,vol. 1, no. 1, pp. 23-25, 1999.
[3] D. Kerle, R. Ludwig, A. Geiger, and D. Paschek, “Temperature dependence of the solubility of carbon dioxide in imidazolium-based ionic liquids,” Journal of Physical Chemistry B, vol. 113, no. 38, pp. 12727-12735, 2009.
[4] M. Galin´ ski, A. Lewandowski, and I. Stepniak, “Ionic liquids as electrolytes,” Electrochimica Acta, vol. 51, no. 26, pp. 5567-5580, 2006.
[5] Y. Imai, H. Abe, T. Goto, Y. Yoshimura, Y. Michishita, and H. Matsumoto, “Structure and thermal property of N, N-diethyl-N-methyl-2-methoxyethyl ammonium tetrafluoroborate-H2O mixtures,” Chemical Physics, vol. 352, pp. 224-230, 2008.
[6] W. Xu, L. M. Wang, R. A. Nieman, and C. A. Angell, “Ionic liquids of chelated orthoborates as model ionic glassformers,” Journal of Physical Chemistry B, vol. 107, no. 42, pp. 11749-11756, 2003.
[7] J. G. Huddleston, A. E. Visser,W.M. Reichert, H. D. Willauer, G. A. Broker, and R. D. Rogers, “Characterization and comparison of hydrophilic and hydrophobic room temperature ionic liquids incorporating the imidazolium cation,” Green Chemistry, vol. 3, no. 4, pp. 156-164, 2001.
[8] J. L. Anderson, J. Ding, T. Welton, and D. W. Armstrong, “Characterizing ionic liquids on the basis ofmultiple solvation interactions,” Journal of the American Chemical Society, vol. 124, no. 47, pp. 14247-14254, 2002.
[9] K. R. Seddon, A. Stark, andM. J. Torres, “Influence of chloride, water, and organic solvents on the physical properties of ionic liquids,” Pure and Applied Chemistry, vol. 72, no. 12, pp. 2275-2287, 2000.
[10] K. Nishikawa and K. I. Tozaki, “Intermittent crystallization of an ionic liquid: 1-isopropyl-3-methylimidazolium bromide,” Chemical Physics Letters, vol. 463, no. 4.6, pp. 369-372, 2008.
[11] G. J. Kabo, A. V. Blokhin, Y. U. Paulechka, A. G. Kabo, M. P. Shymanovich, and J. W. Magee, “Thermodynamic properties of 1-butyl-3-methylimidazolium hexafluorophosphate in the condensed state,” Journal of Chemical and Engineering Data, vol. 49, no. 3, pp. 453-461, 2004.
[12] O. Yamamuro, Y. Minamimoto, Y. Inamura, S. Hayashi, and H. O. Hamaguchi, “Heat capacity and glass transition of an ionic liquid 1-butyl-3-methylimidazolium chloride,” Chemical Physics Letters, vol. 423, no. 4-6, pp. 371-375, 2006.
[13] Y. Imai, H. Abe, T. Miyashita, T. Goto, H. Matsumoto, and Y. Yoshimura, “Two glass transitions in N, N- diethyl-N-methyl-N-(2-methoxyethyl) ammonium tetrafluoroborate-H2O mixed solutions,” Chemical Physics Letters, vol. 486, no. 1-3, pp. 37-39, 2010.
[14] Y. Imai, H. Abe, H. Matsumoto, O. Shimada, T.Hanasaki, and Y. Yoshimura, “Glass transition behaviour of the quaternary ammonium type ionic liquid, [DEME][I]-H2O mixtures,” Journal of Chemical Thermodynamics, vol. 43, no. 3, pp. 319-322, 2011.
[15] R. Kiefer, S. Y. Chu, P. A. Kilmartin, G. A. Bowmaker, R. P. Cooney, and J. Travas-Sejdic, “Mixed-ion linear actuation behaviour of polypyrrole,” Electrochimica Acta, vol. 52, no. 7, pp. 2386-2391, 2007.
[16] H. D. B. Jenkins, H. K. Roobottom, J. Passmore, and L. Glasser, “Relationships among ionic lattice energies, molecular (formula unit) volumes, and thermochemical radii,” Inorganic Chemistry, vol. 38, no. 16, pp. 3609-3620, 1999.
[17] M. S. Sethi and M. Satake, Periodic Tables and Periodic Properties, Discovery Publishing House, Delhi, India, 2003.
[18] E. R. Nightingale Jr., “Phenomenological theory of ion solvation. Effective radii of hydrated ions,” Journal of Physical Chemistry, vol. 63, no. 9, pp. 1381-1387, 1959.
[19] Z. B. Zhou, H. Matsumoto, and K. Tatsumi, “Low-melting, low-viscous, hydrophobic ionic liquids: aliphatic quaternary ammonium salts with perfluoroalkyltrifluoroborates,” Chemistry.A European Journal, vol. 11, no. 2, pp. 752-766, 2005.
[20] Y. Imai, H. Abe, T. Goto, Y. Yoshimura, Y. Michishita, and H. Matsumoto, “Structure and thermal property of N, N-diethyl-N-methyl-N-2-methoxyethyl ammonium tetrafluoroborate-H2O mixtures,” Chemical Physics, vol. 352, no. 1-3, pp. 224-230, 2008.
[21] H. Kanno, K. Shimada, and K. Katoh, “Two glass transitions in the tetraethylammonium chloride-water system: evidence for a metastable liquid-liquid immiscibility at low temperatures,” Chemical Physics Letters, vol. 103, no. 3, pp. 219-221, 1983.
[22] H. Kanno, K. Shimada, K. Yoshino, and T. Iwamoto, “Anomalous concentration dependence of the glass transition temperature for aqueous tetrapropylammonium chloride solution,” Chemical Physics Letters, vol. 112, no. 3, pp. 242-245, 1984.
[23] H. Kanno, K. Shimada, and T. Katoh, “A glass formation study of aqueous tetraalkylammonium halide solutions,” Journal of Physical Chemistry, vol. 93, no. 12, pp. 4981-4985, 1989.
[24] G. S. Fulcher, “Analysis of recentmeasurements of the viscosity of glasses,” Journal of the American Ceramic Society, vol. 6, pp. 339-355, 1925.
[25] Y. Yoshimura, T. Goto, H. Abe, and Y. Imai, “Existence of nearly-free hydrogen bonds in an ionic liquid, N, N-diethyl-N-methyl-N-(2-methoxyethyl) ammonium tetrafluoroborate-water at 77 K,” Journal of Physical Chemistry B, vol. 113, no. 23, pp. 8091-8095, 2009.
[26] L. Cammarata, S. G. Kazarian, P. A. Salter, and T. Welton, “Molecular states of water in room temperature ionic liquids,” Physical Chemistry Chemical Physics, vol. 3, no. 23, pp. 5192- 5200, 2001.
[27] H. Kanno and J. Hiraishi, “Raman spectroscopic study of aqueous LiX and CaX2 solutions (X = Cl, Br, and I) in the glassy state,” Journal of Physical Chemistry, vol. 87, no. 19, pp. 3664-3670, 1983.
[28] Y. Yoshimura, H. Kimura, C. Okamoto, T. Miyashita, Y. Imai, and H. Abe, “Glass transition behaviour of ionic liquid, 1-butyl-3-methylimidazolium tetrafluoroborate-H2O mixed solutions,” Journal of Chemical Thermodynamics, vol. 43, no. 3, pp. 410-412, 2011.
